Model Q Lasher
The Model Q hand-type Lasher is made for short span jobs like splicing or repair, traffic light installation, control cables, aerial inserts for underground construction, or any job that would be simpler with a hand-held, variable tension lasher. It is compatible with either .045” or .061” S-type lashing wire.
The rugged body is of cast aluminum with a removable flange for easy loading. Wire tension rollers are of hardened tool steel.
Falcon Lasher
The Falcon Lasher is a completely redesigned lasher, incorporating design elements of our previous Eagle, Lineman and Model K lashers, as well as new design concepts that simplify the lasher to make it more robust and lower maintenance.
This new lasher will single or double lash without strand traction. It is also equipped with a clutch handle to allow easy mounting and passing the unit around a pole without cutting the lashing wire or removing it from the drive wheels.
Eagle Lasher
The Eagle Lasher was designed and built to meet the requirements of modern cable lashing jobs. Sized to install CATV or fiber optic cables, it’s lightweight, durable and simple.
With a bundle capacity of 2-1/4” or single cable up to 2”, the Eagle lasher will single- or double-lash most Last Mile or FTTH installations. It also now uses a wire quick release trigger, mounted below the handle, for easy, one-hand engagement and release for continuous lashing and quick transfer time around poles.
Lineman Lasher
The Lineman™ Lasher is the pull type cable lasher for tough jobs, especially in dusty, wet or icy conditions. Use it to lash single or multiple cables up to 3” outside diameter and for single and double overlashing.
The Lineman™ Lasher holds up to 1200' per coil of 0.045” lashing wire without reloading, and works compatibly with up to 1/2” strands. A flat base ensures the lasher won’t roll around in transit, and the ergonomic handle and controls add to total precision performance.

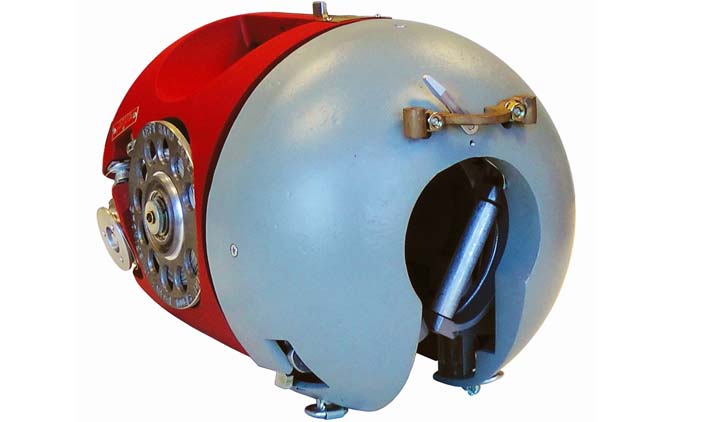

Model K Lasher
The Model K pull-type Lasher handles just about any size lashing job. Use it to single- or double-lash a cable up to 3-1/2" outside diameter multiple cables up to a combined outside diameter of 4-5/8". The rotating drum on the Model K makes one revolution every 13". Load both payout reels to create a double lash with a support every 6-1/2" or load one payout reel for a single lash support every 13".
The Model K uses all types and sizes of lashing wire from .045" to .091". The 1AK metal reel and a cone shaped hub are optional features. The straight hub wire spool is standard.
