These lightweight cable pullers are used when you have a job that requires pulling or lifting. DCD pullers are versatile enough that they can be used for smaller cable pulling jobs and lifting transformers. Our pullers have a variety of anchor options, including attaching to a tree, pole, Category III hitch receiver, 2” ball hook, concrete floor, or pylon (transmission tower). Included with each unit is a 6’ Polyester Sling (42300-206).
Their interchangeable capstan drums mean you can modify the speed and pulling power to suit your needs, and you can use any length of rope you choose. With anti-reversing roller clutch bearings standard on every puller, and an operating position away from the line of pull these pullers are powerful, portable and safe to use for personal or commercial application.

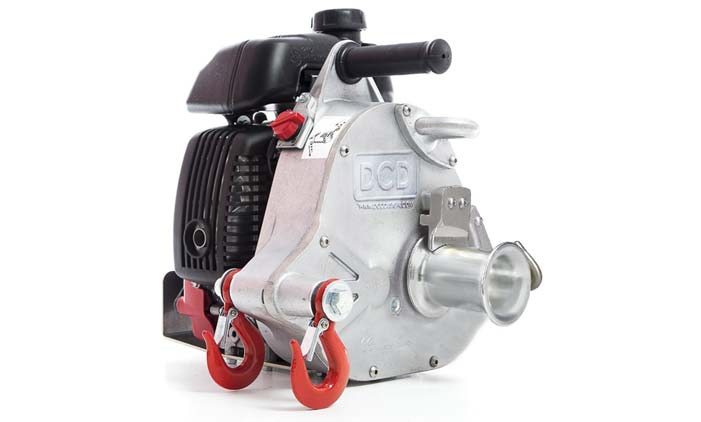

Part No. 41000-200TUF-Lugger™ Lite
With a powerful gas powered engine this puller comes out of the box ready for pulling jobs up to 2,200 lb. Adding snatch blocks can multiply your pulling strength (depending on the arrangement). Lightweight at only 35 lb, this puller can be carried in and out of remote locations, and with a continuous work cycle and a maximum pulling speed of up to 60' per minute, it will get the job done quickly and efficiently.

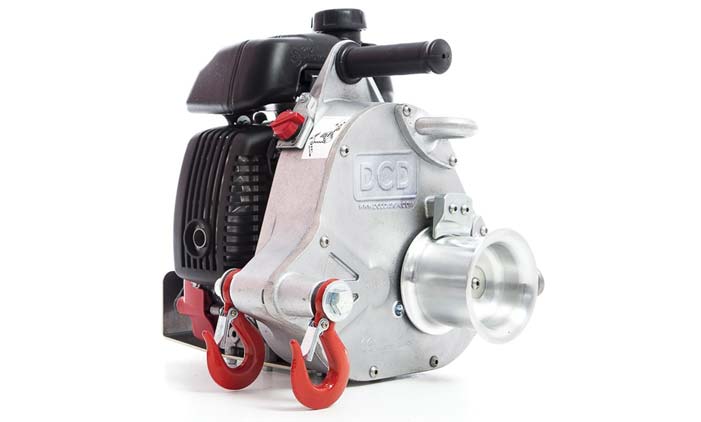

TUF-Lugger™ Lite (High Speed)
The overall pulling weight that this unit can handle is lower than the regular speed model, but with a larger capstan drum and a lower gear ratio, this unit can pull at speeds of up to 115' per minute. The other features that you’ll find on the regular speed model are still standard on this model, including the gas engine, and continuous work cycle.

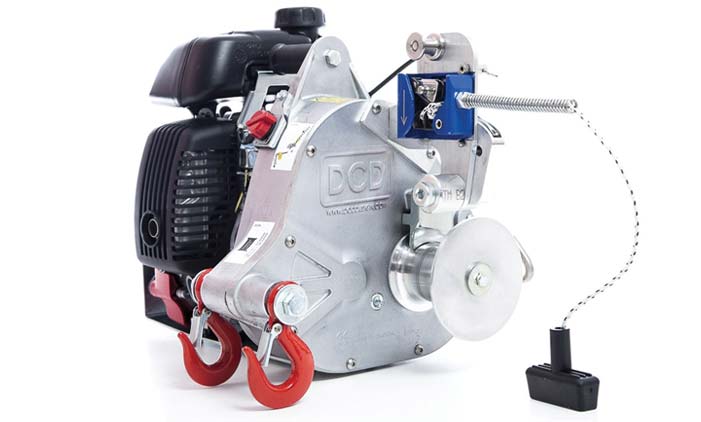

TUF-Lugger™ Lite Lifting - Gas
This gas powered unit is used for jobs which require pulling and lifting. The capstan drum comes standard with a safety lip to prevent the rope from slipping off the drum during lifting jobs, and a rope grabbing system to prevent slack or rope slippage if the rope is released during a lift. This puller also features a clutch system which does not turn when idling.

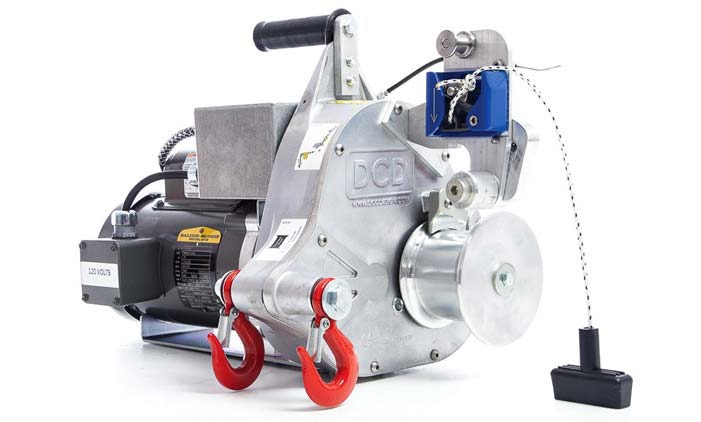

TUF-Lugger™ Lite Lifting - Electric
This electric model gives you the option of working in areas where gas motors are prohibited, such as indoors. With a higher pull load than its gas powered counterpart this electric puller makes a powerful addition to the team. It comes standard with the same rope grabbing system as our other lifting unit, so you can feel confident that this machine is just as safe and reliable.

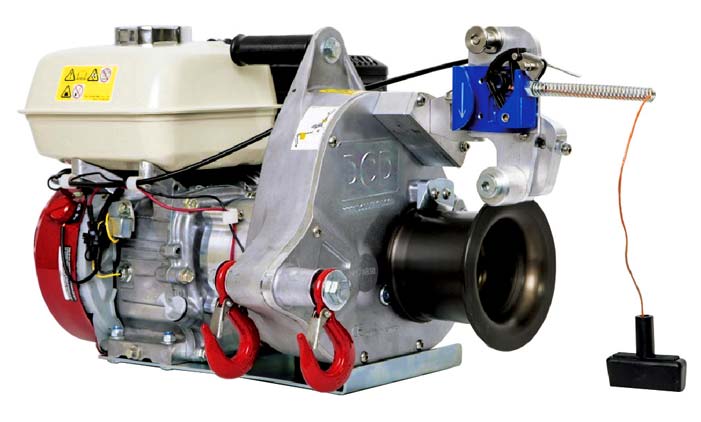

TUF-Lugger™ Lite Lifting - Heavy Duty
This gas powered unit is equipped with a Honda GX-160 cc engine, which offers superior performance in a wide variety of tasks, such as erecting towers, lifting antennas, replacing insulators, cable pulling and other arduous tasks.
The integrated rope grabbing system allows the operator to work safely and the start/stop mechanism means he can focus on the task required. This system can be used to lift or lower a load. A wide range of accessories are available to simplify the installation process and anchor this model at various anchoring points such as a vehicle, a post, a pylon and more.
